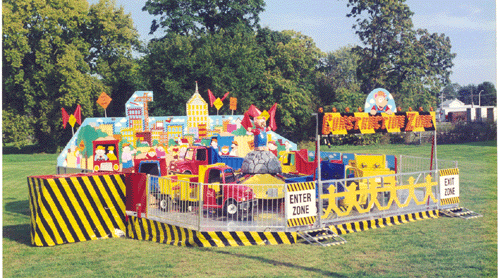

Construction Zone

All Specifications in Accordance With ASTM Standards Where Applicable

CAPACITY
Number of Vehicles 6
Maximum Passengers per vehicle 8
Maximum Passengers per load 48
Maximum Weight Per Vehicle 750 lbs.
Adults can ride too!

HEIGHT REQUIREMENTS AND OPERATING DATA
Minimum Height For Children 36 inches / 92 centimeters
Passenger Loading: Simultaneous
Maximum Ride Speed 3-1/2 rpm

POWER REQUIREMENTS
3 Phase, 208 volt
100 Amp Panel
Operator Control Panel all 24 volt
LEAD CABLE: 100 foot/30.5 meter 10/5 Type SO

DRIVE
5 HP Drive Motor (Single phase option additional)
Control: Frequency Drive

LIGHTS AND SCENERY
Construction themed Rear Scenery with chasing lights and flags
Front marquee with chasing lights
Customization available on scenery
Customize your own names for dump trucks and scenery
Add-On Option: Replace "Critter" with Construction Themed Umbrella
(Black and Yellow)


SPACE REQUIREMENTS

Park Model:
Width: 32 feet/ 9.78 meters
Depth: 32 feet/ 9.78 meters
Operation Height: 12 feet/3.67 meters, Clear of All Overhead Obstructions
Height with Umbrella Option: 18 feet/5.5 meters, Clear of All Overhead Obstructions

Trailer Mounted Model:
Width 40 feet/12.2 meters
Depth 32 feet/ 9.78 meters
Operation Height: 18 feet/5.5 meters, Clear of All Overhead Obstructions
Over-the-road height: 13feet 2inches/4.02 meters
Over-the-road width: 8-1/2 feet/2.6 meters
Approximate Weight: 15,000 lbs. Pull with a one-ton pick-up!
Easy Set-Up and Tear-Down
Deluxe Package Available More lights! More Flash!

Great Value for the Money

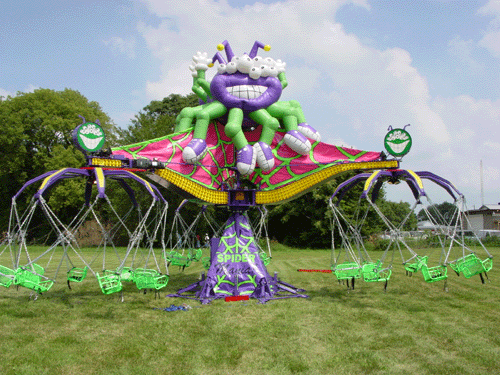

SpiderMania

SPECIFICATIONS

All specifications in accordance with ASTM where applicable.

CAPACITY
Maximum Passenger Capacity: 48 Small Children / 24 Adults, 4,800 lbs. (2,177  kg)
Maximum Seat Capacity: 2 Small Children / 1 Adult--200 lbs. (90.7 kg)

HEIGHT REQUIREMENTS AND OPERATING DATA
Minimum Passenger Height: 30 inches / 76.2 centimeters
Maximum Passenger Height 68 inches / 172.7 centimeters
Maximum Ride Speed: 5.0 rpm Main Center Unit, 10 rpm* Unit  Sweeps
Measured in relation to the main center unit.
Maximum Unbalanced Condition: 2 Seats Per Main Unit
Maximum Wind Speed: 34 mph Operating / 60 mph Static
Maximum Ride Cycle: 120 Seconds Max. / 90 Seconds Recommended

DRIVE
Frequency Drive Control
1 Main Motor: 5 hp with gearbox
3 Sweep Unit Motors: 3 hp with gearbox

LIGHTING
Chasing Lights on both sides of 3 Sweeps
3 Quartz Lights Shining on Spider
3 Quartz Lights Shining on Passengers

POWER REQUIREMENTS
Power Requirements: 208 volt / 3 phase, 100 amps

SPACE REQUIREMENTS
Area: 49 foot/14.9 meter Circle
Height: 19 feet/5.79 meters Free of All Obstructions
Ride Weight Empty: 12,000 lbs. (5,443 kg)
Maximum Ride Weight: 16,800 lbs. (7,620 kg)

TRANSPORT INFORMATION
Height OF Trailered Ride: 126"
Length of Trailered Ride: 236"
Width of Trailered Ride: 8

CUSTOMIZATION OPPORTUNITIES!

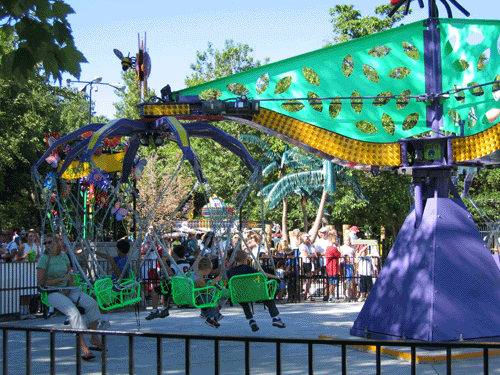

Your SpiderMania can be customized according to your theme.  For instance in a Garden Bugs Theme the SpiderMania was customized as a DragonFly at Lagoon Park as shown in the picture below.

Customized SpiderMania for Lagoon Park to Theme of Dragonfly
